Category: Magelis STO, STU

Part of Harmony

The new Magelis STO et STU boost the Magelis Small Panels range : more flexibility, more communication, easy and fast revolutionary mounting system… Powered by Vijeo Designer, bring a cost-effective solution to all machines builders

HMISTO705

4.3″ wide screen touch panel, RS-232 terminal block

Description

This Magelis STO small touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 4.3″ color TFT LCD display with, 480 x 272 pixels and 26MB EPROM. It also has 1 host + 1 mini-B USB ports and 1 RS232C / RS485 port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays color graphic pages. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

Specifications

Main
range of product Harmony STO & STU
product or component type Touch panel screen
software designation EcoStruxure Operator Terminal Expert
operating system Harmony
Complementary
display size 4.3 inch
display type Colour TFT LCD
display colour 65536 colours
display resolution 480 x 272 pixels
touch panel Analogue
backlight lifespan 50000 hours with white
brightness 16 levels via touch panel
character font ASCII (European characters)
Chinese (simplified Chinese)
Korean
Japanese (ANK, Kanji)
Cyrillic
Taiwanese (traditional Chinese)
[Us] rated supply voltage 12…24 V DC – 10…20 %
power consumption in W 7.5 W
number of pages 8999
memory description Back up of data 512 kB
Application memory 26 MB
integrated connection type 1 USB 2.0 type mini B
1 USB 2.0 type A
1 serial link – 9-pin terminal block – RS232C (rate: 2400…115200 bps)
supply External source
realtime clock With RTC-battery set optional
downloadable protocols Third party protocols
Modbus
range compatibility MitsubishI
Siemens
Omron
Allen-Bradley
fixing mode By 2 installation fasteners, mounting on 1.5 to 6 mm thick panel
enclosure material PPT
front material Plastic
cut-out dimensions 77.5 x 112.5 mm
66 x 105 mm with mounting adaptor
net weight 0.22 kg
Environment
standards ANSI/ISA 12.12.01
CSA C22.2 No 142
EN 61000-6-2
CSA C22.2 No 213
UL 61010-1
EN 61131-2
EN 61000-6-4
UL 61010-2-201
product certifications KCC
CE
UL
C-Tick
ATEX zone 2/22
cUL
ambient air temperature for operation 0…50 °C
ambient air temperature for storage -20…60 °C
relative humidity 10…90 % without condensation
operating altitude 2000 m
IP degree of protection IP65f (front panel)
IP20 (rear panel)
NEMA degree of protection NEMA 4X/13 front panel (indoor use)
shock resistance 15 gn for 11 ms conforming to IEC 61131-2
vibration resistance 1 gn (f = 5…150 Hz) conforming to IEC 61131-2
3.5 mm constant amplitude (f = 5…150 Hz) conforming to IEC 61131-2
electromagnetic compatibility Resistance to radiated electromagnetic fields – test level: 10 V/m (80 MHz…2.7 GHz)
Resistance to electrostatic discharge – test level: 8 kV level 3 (air discharge) conforming to EN 61000-4-2
Resistance to electrostatic discharge – test level: 6 kV level 3 (direct contact) conforming to EN 61000-4-2
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 548.5 g
Package 1 Height 13.2 cm
Package 1 width 7.8 cm
Package 1 Length 18.2 cm

HMISTO715

4.3″ wide screen touch panel, RS-232/485 RJ45



Description

This Magelis STO small touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 4.3″ color TFT LCD display with, 480 x 272 pixels and 26MB EPROM. It also has 1 host + 1 mini-B USB ports and 1 RS232C / RS485 port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays color graphic pages. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

Specifications

Main
range of product Harmony STO & STU
product or component type Touch panel screen
software designation EcoStruxure Operator Terminal Expert
operating system Harmony
Complementary
display size 4.3 inch
display type Colour TFT LCD
display colour 65536 colours
display resolution 480 x 272 pixels
touch panel Analogue
backlight lifespan 50000 hours with white
brightness 16 levels via touch panel
character font Chinese (simplified Chinese)
Japanese (ANK, Kanji)
ASCII (European characters)
Taiwanese (traditional Chinese)
Korean
Cyrillic
[Us] rated supply voltage 12…24 V DC – 10…20 %
power consumption in W 7.5 W
number of pages 8999
memory description Back up of data 512 kB
Application memory 26 MB
integrated connection type 1 USB 2.0 type mini B
1 USB 2.0 type A
1 serial link – RJ45 – RS232C/RS485 (rate: 2400…115200 bps)
supply External source
realtime clock With RTC-battery set optional
downloadable protocols Third party protocols
Modbus
range compatibility MitsubishI
Omron
Siemens
Allen-Bradley
fixing mode By 2 installation fasteners, mounting on 1.5 to 6 mm thick panel
enclosure material PPT
front material Plastic
cut-out dimensions 77.5 x 112.5 mm
66 x 105 mm with mounting adaptor
net weight 0.22 kg
Environment
standards ANSI/ISA 12.12.01
CSA C22.2 No 142
UL 61010-2-201
EN 61000-6-2
CSA C22.2 No 213
EN 61000-6-4
UL 61010-1
EN 61131-2
product certifications UL
C-Tick
KCC
CE
cUL
ATEX zone 2/22
ambient air temperature for operation 0…50 °C
ambient air temperature for storage -20…60 °C
relative humidity 10…90 % without condensation
operating altitude 2000 m
IP degree of protection IP65f (front panel)
IP20 (rear panel)
NEMA degree of protection NEMA 4X/13 front panel (indoor use)
shock resistance 15 gn for 11 ms conforming to IEC 61131-2
vibration resistance 1 gn (f = 5…150 Hz) conforming to IEC 61131-2
3.5 mm constant amplitude (f = 5…150 Hz) conforming to IEC 61131-2
electromagnetic compatibility Resistance to radiated electromagnetic fields – test level: 10 V/m (80 MHz…2.7 GHz)
Resistance to electrostatic discharge – test level: 8 kV level 3 (air discharge) conforming to EN 61000-4-2
Resistance to electrostatic discharge – test level: 6 kV level 3 (direct contact) conforming to EN 61000-4-2
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 525.0 g
Package 1 Height 13.2 cm
Package 1 width 7.8 cm
Package 1 Length 18.2 cm
Unit Type of Package 2 S03
Number of Units in Package 2 12
Package 2 Weight 7060.0 g
Package 2 Height 30 cm
Package 2 width 30 cm
Package 2 Length 40 cm
Unit Type of Package 3 P12
Number of Units in Package 3 288
Package 3 Weight 178440.0 g
Package 3 Height 80 cm
Package 3 width 120 cm
Package 3 Length 110 cm

HMISTO735

4.3″ wide screen touch panel, Ethernet

Description

This Magelis STO small touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 4.3″ color TFT LCD display with, 480 x 272 pixels and 26MB EPROM. It also has 1 host + 1 mini-B USB ports and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays color graphic pages. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

Specifications

Main
range of product Harmony STO & STU
product or component type Touch panel screen
software designation EcoStruxure Operator Terminal Expert
operating system Harmony
Complementary
display size 4.3 inch
display type Colour TFT LCD
display colour 65536 colours
display resolution 480 x 272 pixels
touch panel Analogue
backlight lifespan 50000 hours with white
brightness 16 levels via touch panel
character font ASCII (European characters)
Cyrillic
Taiwanese (traditional Chinese)
Chinese (simplified Chinese)
Japanese (ANK, Kanji)
Korean
[Us] rated supply voltage 12…24 V DC – 10…20 %
power consumption in W 8.1 W
number of pages 8999
port Ethernet 10BASE-T/100BASE-TX
memory description Back up of data 512 kB
Application memory 26 MB
integrated connection type 1 USB 2.0 type mini B
1 USB 2.0 type A
1 Ethernet TCP/IP – RJ45
supply External source
realtime clock With RTC-battery set optional
downloadable protocols Modbus TCP
Modbus
Third party protocols
range compatibility Omron
MitsubishI
Siemens
Allen-Bradley
fixing mode By 2 installation fasteners, mounting on 1.5 to 6 mm thick panel
enclosure material PPT
front material Plastic
cut-out dimensions 77.5 x 112.5 mm
66 x 105 mm with mounting adaptor
net weight 0.22 kg
Environment
standards UL 61010-2-201
EN 61131-2
EN 61000-6-2
EN 61000-6-4
CSA C22.2 No 213
CSA C22.2 No 142
UL 61010-1
ANSI/ISA 12.12.01
product certifications CE
C-Tick
ATEX zone 2/22
KCC
UL
cUL
ambient air temperature for operation 0…50 °C
ambient air temperature for storage -20…60 °C
relative humidity 10…90 % without condensation
operating altitude 2000 m
IP degree of protection IP65f (front panel)
IP20 (rear panel)
NEMA degree of protection NEMA 4X/13 front panel (indoor use)
shock resistance 15 gn for 11 ms conforming to IEC 61131-2
vibration resistance 1 gn (f = 5…150 Hz) conforming to IEC 61131-2
3.5 mm constant amplitude (f = 5…150 Hz) conforming to IEC 61131-2
electromagnetic compatibility Resistance to radiated electromagnetic fields – test level: 10 V/m (80 MHz…2.7 GHz)
Resistance to electrostatic discharge – test level: 8 kV level 3 (air discharge) conforming to EN 61000-4-2
Resistance to electrostatic discharge – test level: 6 kV level 3 (direct contact) conforming to EN 61000-4-2
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 532.5 g
Package 1 Height 13.2 cm
Package 1 width 7.8 cm
Package 1 Length 18.2 cm
Unit Type of Package 2 S03
Number of Units in Package 2 12
Package 2 Weight 6836.0 g
Package 2 Height 30 cm
Package 2 width 30 cm
Package 2 Length 40 cm
Unit Type of Package 3 P12
Number of Units in Package 3 288
Package 3 Weight 178440.0 g
Package 3 Height 80 cm
Package 3 width 120 cm
Package 3 Length 110 cm

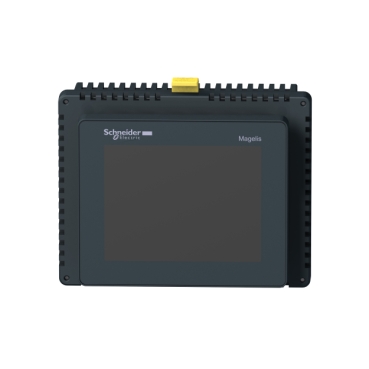

HMISTU655

touch panel screen 3”5 Color

Description

This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5″ color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.’

Specifications

Main
range of product Harmony STO & STU
product or component type Touch panel screen
software designation Vijeo Designer
operating system Harmony
processor name CPU ARM9
Complementary
display size 3.5 inch
display type QVGA TFT colour touchscreen
display colour 65536 colours
display resolution 320 x 240 pixels QVGA
touch panel Analogue
backlight lifespan 50000 hours
brightness 16 levels
character font Chinese (simplified Chinese)
Japanese (ANK, Kanji)
ASCII
Korean
Taiwanese (traditional Chinese)
[Us] rated supply voltage 24 V DC
supply External source
supply voltage limits 20.4…28.8 V
inrush current 30 A
power consumption in W 6.5 W
number of pages Limited by internal memory capacity
processor frequency 333 MHz
memory description Application memory 16 MB
Back up of data 64 kB
integrated connection type 1 USB 2.0 type mini B
1 USB 2.0 type A
COM1 serial link – female RJ45 – RS232C/RS485 (rate: <= 115.2 kbits/s)
power supply – removable screw terminal block
1 Ethernet – RJ45
realtime clock Access to the PLC real-time clock
downloadable protocols Modbus TCP/IP
Modbus
Uni-TE
Third party protocols
fixing mode Ø 22 mm hole
enclosure material PC/PBT
marking With Schneider logo
CE
height 98.15 mm
width 118 mm
depth 55.3 mm
Environment
immunity to microbreaks 10 ms
standards IEC 61000-6-2
EN 61131-2
UL 1604
UL 508
FCC Class A
product certifications CULus
C-Tick
Marine
UL class 1 Div2 T4A ou T5
ambient air temperature for operation 0…50 °C
ambient air temperature for storage -20…60 °C
relative humidity 0…85 % without condensation
operating altitude <= 2000 m
IP degree of protection IP20 (rear panel) conforming to IEC 60529
IP65 (front panel) conforming to IEC 60529
NEMA degree of protection NEMA 4X front panel (indoor use)
shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
vibration resistance +/- 3.5 mm (f = 5…9 Hz) conforming to IEC 60068-2-6
1 gn (f = 9…150 Hz) conforming to IEC 60068-2-6
resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 529.0 g
Package 1 Height 6.876 cm
Package 1 width 13.194 cm
Package 1 Length 18.504 cm
Unit Type of Package 2 S03
Number of Units in Package 2 16
Package 2 Weight 8960.0 g
Package 2 Height 30 cm
Package 2 width 30 cm
Package 2 Length 40 cm
Unit Type of Package 3 P12
Number of Units in Package 3 384
Package 3 Weight 224040.0 g
Package 3 Height 95 cm
Package 3 width 80 cm
Package 3 Length 120 cm
Contractual warranty
Warranty 18 months

HMISTU655W

touch panel screen 3”5 Color without Schneider logo

Specifications

Main
range of product Harmony STO & STU
product or component type Touch panel screen
software designation Vijeo Designer
operating system Harmony
processor name CPU ARM9
Complementary
display size 3.5 inch
display type QVGA TFT colour touchscreen
display colour 65536 colours
display resolution 320 x 240 pixels QVGA
touch panel Analogue
backlight lifespan 50000 hours
brightness 16 levels
character font Korean
Japanese (ANK, Kanji)
ASCII
Taiwanese (traditional Chinese)
Chinese (simplified Chinese)
[Us] rated supply voltage 24 V DC
supply External source
supply voltage limits 20.4…28.8 V
inrush current 30 A
power consumption in W 6.5 W
number of pages Limited by internal memory capacity
processor frequency 333 MHz
memory description Application memory 16 MB
Back up of data 64 kB
integrated connection type 1 USB 2.0 type mini B
1 USB 2.0 type A
COM1 serial link – female RJ45 – RS232C/RS485 (rate: <= 115.2 kbits/s)
power supply – removable screw terminal block
1 Ethernet – RJ45
realtime clock Access to the PLC real-time clock
downloadable protocols Modbus TCP/IP
Modbus
Uni-TE
Third party protocols
fixing mode Ø 22 mm hole
enclosure material PC/PBT
marking Without Schneider logo
CE
height 98.15 mm
width 118 mm
depth 55.3 mm
Environment
immunity to microbreaks 10 ms
standards UL 508
UL 1604
EN 61131-2
FCC Class A
IEC 61000-6-2
product certifications C-Tick
Marine
UL class 1 Div2 T4A ou T5
cULus
ambient air temperature for operation 0…50 °C
ambient air temperature for storage -20…60 °C
relative humidity 0…85 % without condensation
operating altitude <= 2000 m
IP degree of protection IP20 (rear panel) conforming to IEC 60529
IP65 (front panel) conforming to IEC 60529
NEMA degree of protection NEMA 4X front panel (indoor use)
shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
vibration resistance +/- 3.5 mm (f = 5…9 Hz) conforming to IEC 60068-2-6
1 gn (f = 9…150 Hz) conforming to IEC 60068-2-6
resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 540.0 g
Package 1 Height 6.5 cm
Package 1 width 13 cm
Package 1 Length 18.5 cm

HMISTU855

touch panel screen 5”7 Color

Description

This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7″ color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

Specifications

Main
range of product Harmony STO & STU
product or component type Touch panel screen
software designation Vijeo Designer
operating system Harmony
processor name CPU ARM9
Complementary
display size 5.7 inch
display type QVGA TFT colour touchscreen
display colour 65536 colours
display resolution 320 x 240 pixels QVGA
touch panel Analogue
backlight lifespan 50000 hours
brightness 16 levels
character font Taiwanese (traditional Chinese)
Japanese (ANK, Kanji)
Chinese (simplified Chinese)
ASCII
Korean
[Us] rated supply voltage 24 V DC
supply External source
supply voltage limits 20.4…28.8 V
inrush current 30 A
power consumption in W 6.8 W
number of pages Limited by internal memory capacity
processor frequency 333 MHz
memory description Application memory 16 MB
Back up of data 64 kB
integrated connection type 1 USB 2.0 type mini B
1 USB 2.0 type A
COM1 serial link – female RJ45 – RS232C/RS485 (rate: <= 115.2 kbits/s)
power supply – removable screw terminal block
1 Ethernet – RJ45
realtime clock Access to the PLC real-time clock
downloadable protocols Uni-TE
Modbus TCP/IP
Third party protocols
Modbus
fixing mode Ø 22 mm hole
enclosure material PC/PBT and PAA
marking With Schneider logo
CE
height 129.15 mm
width 163 mm
depth 56.5 mm
Environment
immunity to microbreaks 7 ms
standards UL 1604
FCC Class A
IEC 61000-6-2
EN 61131-2
UL 508
product certifications UL class 1 Div2 T4A ou T5
C-Tick
cULus
Marine
ambient air temperature for operation 0…50 °C
ambient air temperature for storage -20…60 °C
relative humidity 0…85 % without condensation
operating altitude <= 2000 m
IP degree of protection IP20 (rear panel) conforming to IEC 60529
IP65 (front panel) conforming to IEC 60529
NEMA degree of protection NEMA 4X front panel (indoor use)
shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
vibration resistance +/- 3.5 mm (f = 5…9 Hz) conforming to IEC 60068-2-6
1 gn (f = 9…150 Hz) conforming to IEC 60068-2-6
resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 865.0 g
Package 1 Height 6.961 cm
Package 1 width 18.532 cm
Package 1 Length 26.974 cm
Unit Type of Package 2 P12
Number of Units in Package 2 192
Package 2 Weight 187464.0 g
Package 2 Height 95 cm
Package 2 width 80 cm
Package 2 Length 120 cm
Unit Type of Package 3 S03
Number of Units in Package 3 8
Package 3 Weight 7436.0 g
Package 3 Height 30 cm
Package 3 width 30 cm
Package 3 Length 40 cm
Contractual warranty
Warranty 18 months

HMISTU855W

touch panel screen 5”7 Color without Schneider logo

Description

The touch panel screen features 5.7inch TFT color display, supports 320 x 240 pixels QVGA resolution. It is equipped with 1 USB 2.0 type mini B, 1 USB 2.0 type A, removable screw terminal block for power supply and COM1 serial link (female RJ45, RS232C/RS485 integrated). The screen supports Japanese (ANK, Kanji), Chinese (simplified Chinese), Taiwanese (traditional Chinese), Korean and ASCII character fonts. This touch panel screen has 65536 colors with 50,000 hours of backlight lifespan. It is an IP20/IP65 and NEMA 4X rated product. The enclosure is made of PC/PBT and PPA. Its dimensions are 163mm (width) x 56.5mm (depth) x 129.15mm (height). It is suitable for simple machines and infrastructure applications. This product is certified by CULus, C-Tick, UL class 1 Div2 T4A or T5 and Marine. It meets IEC 61000-6-2, UL 508, UL 1604, EN 61131-2 and FCC Class A standards. Harmony STO (fromerly known as Magelis STO) is powered by the EcoStruxure operator terminal expert and STU (fromerly known as Magelis STU) is powered by Vijeo Designer.

Specifications

Main
range of product Harmony STO & STU
product or component type Touch panel screen
software designation Vijeo Designer
operating system Harmony
processor name CPU ARM9
Complementary
display size 5.7 inch
display type QVGA TFT colour touchscreen
display colour 65536 colours
display resolution 320 x 240 pixels QVGA
touch panel Analogue
backlight lifespan 50000 hours
brightness 16 levels
character font ASCII
Japanese (ANK, Kanji)
Chinese (simplified Chinese)
Taiwanese (traditional Chinese)
Korean
[Us] rated supply voltage 24 V DC
supply External source
supply voltage limits 20.4…28.8 V
inrush current 30 A
power consumption in W 6.8 W
number of pages Limited by internal memory capacity
processor frequency 333 MHz
memory description Application memory 16 MB
Back up of data 64 kB
integrated connection type 1 USB 2.0 type mini B
1 USB 2.0 type A
COM1 serial link – female RJ45 – RS232C/RS485 (rate: <= 115.2 kbits/s)
power supply – removable screw terminal block
1 Ethernet – RJ45
realtime clock Access to the PLC real-time clock
downloadable protocols Third party protocols
Uni-TE
Modbus
Modbus TCP/IP
fixing mode Ø 22 mm hole
enclosure material PC/PBT and PAA
marking CE
Without Schneider logo
height 129.15 mm
width 163 mm
depth 56.5 mm
net weight 0.871 kg
Environment
immunity to microbreaks 7 ms
standards IEC 61000-6-2
UL 508
UL 1604
EN 61131-2
FCC Class A
product certifications CULus
C-Tick
UL class 1 Div2 T4A ou T5
Marine
ambient air temperature for operation 0…50 °C
ambient air temperature for storage -20…60 °C
relative humidity 0…85 % without condensation
operating altitude <= 2000 m
IP degree of protection IP20 (rear panel) conforming to IEC 60529
IP65 (front panel) conforming to IEC 60529
NEMA degree of protection NEMA 4X front panel (indoor use)
shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
vibration resistance +/- 3.5 mm (f = 5…9 Hz) conforming to IEC 60068-2-6
1 gn (f = 9…150 Hz) conforming to IEC 60068-2-6
resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 885.0 g
Package 1 Height 7.0 cm
Package 1 width 18.5 cm
Package 1 Length 27.0 cm
Unit Type of Package 2 P12
Number of Units in Package 2 128
Package 2 Weight 125.0 kg
Package 2 Height 75.0 cm
Package 2 width 80.0 cm
Package 2 Length 120.0 cm
Unit Type of Package 3 S03
Number of Units in Package 3 8
Package 3 Weight 7.595 kg
Package 3 Height 30.0 cm
Package 3 width 30.0 cm
Package 3 Length 40.0 cm
